Immediate Quietness
Speech level reduction >29dB
under ISO 23351-1/2021
ACOUSTIC
BOOTH
UNLEASH
PRODUCTVITY
ACOUSTIC
BOOTH
UNLEASH
PRODUCTVITY
Immediate Quietness
Speech level reduction >29dB
under ISO 23351-1/2021
Safety Ensured
Comply to UL 962 Standard for safety
Breath Freely
Gold level in UL Greenguard
Certification

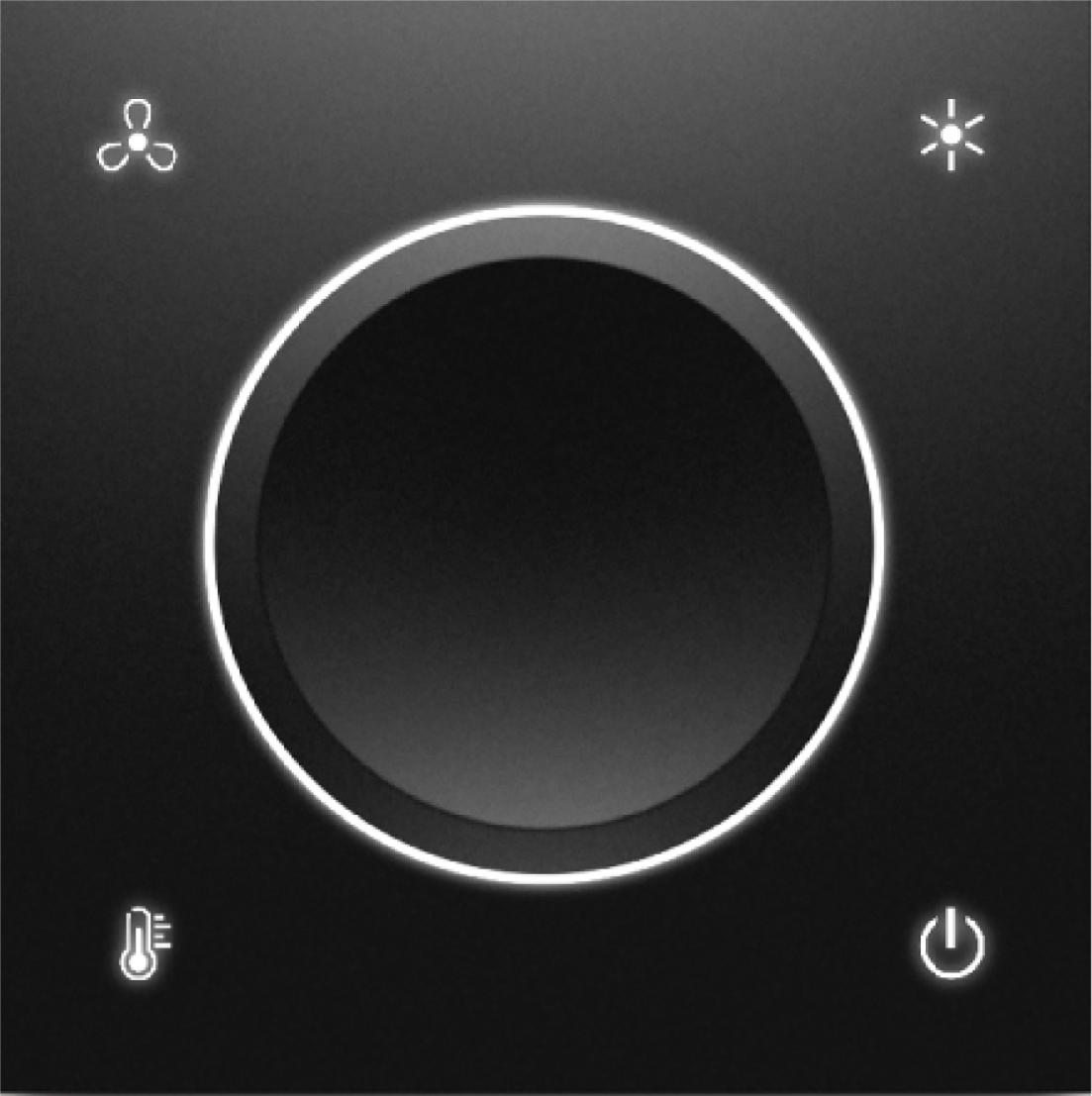

All-in-One Controller
Auto on/off via presence sensor for energy-saving. Adjustable light intensity, color temperature & ventilation speed. Manual override supported

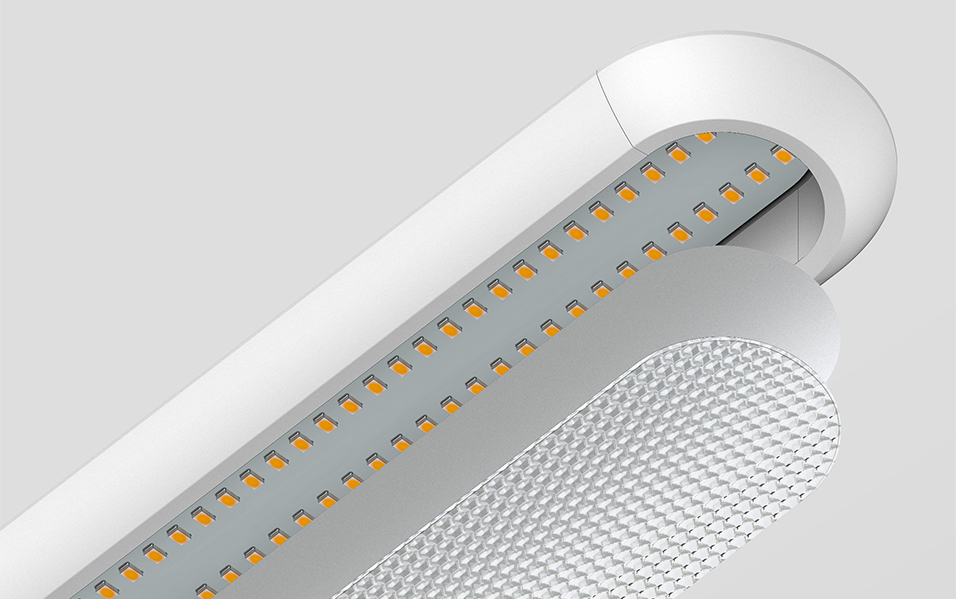

Essential eye-caring
High CRI (＞90) Flicker-Free LED with anti-glare prismatic lens reduces eye strain whileenhancing visual clarity, supporting sustained focus and productivity in work or study environments.

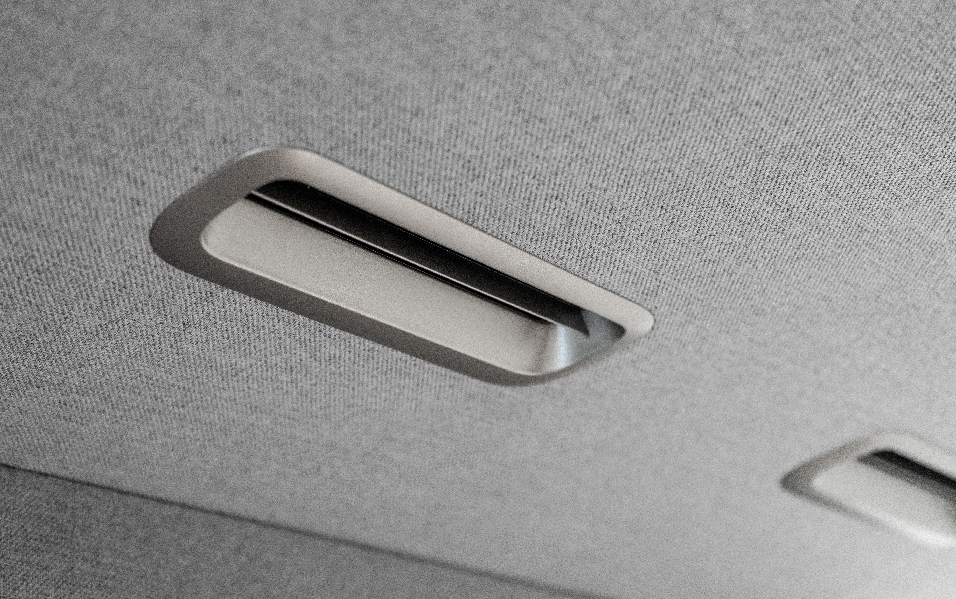

Displacement Ventilation
Superior air exchange efficiency with balanced airflow design eliminates pressure-related ear discomfort, ensuring lasting comfort in refreshed spaces.
Quick build in 1 hr
By 2 people in a mere 1 hour, a new booth will appear in your office(Model S). The booth'smodular design enables a swift installationprocess. This efficient setup reguires no trimming, bolting,or gluing. allowing immediate use.
MODEL
S M SL L XL

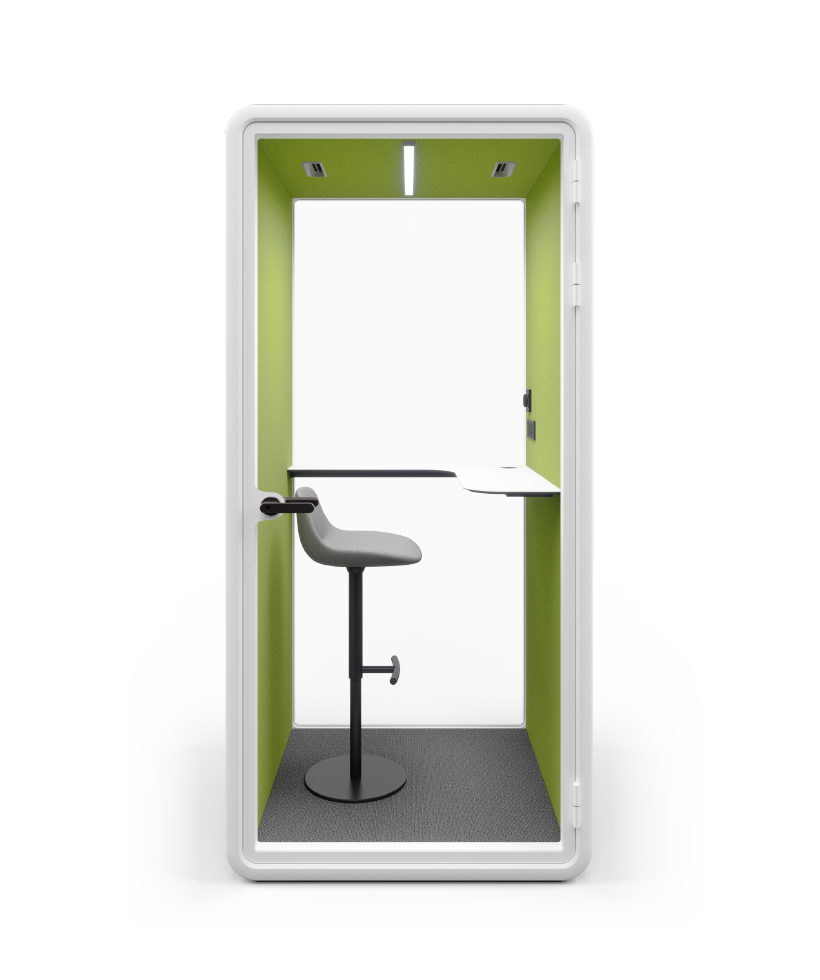

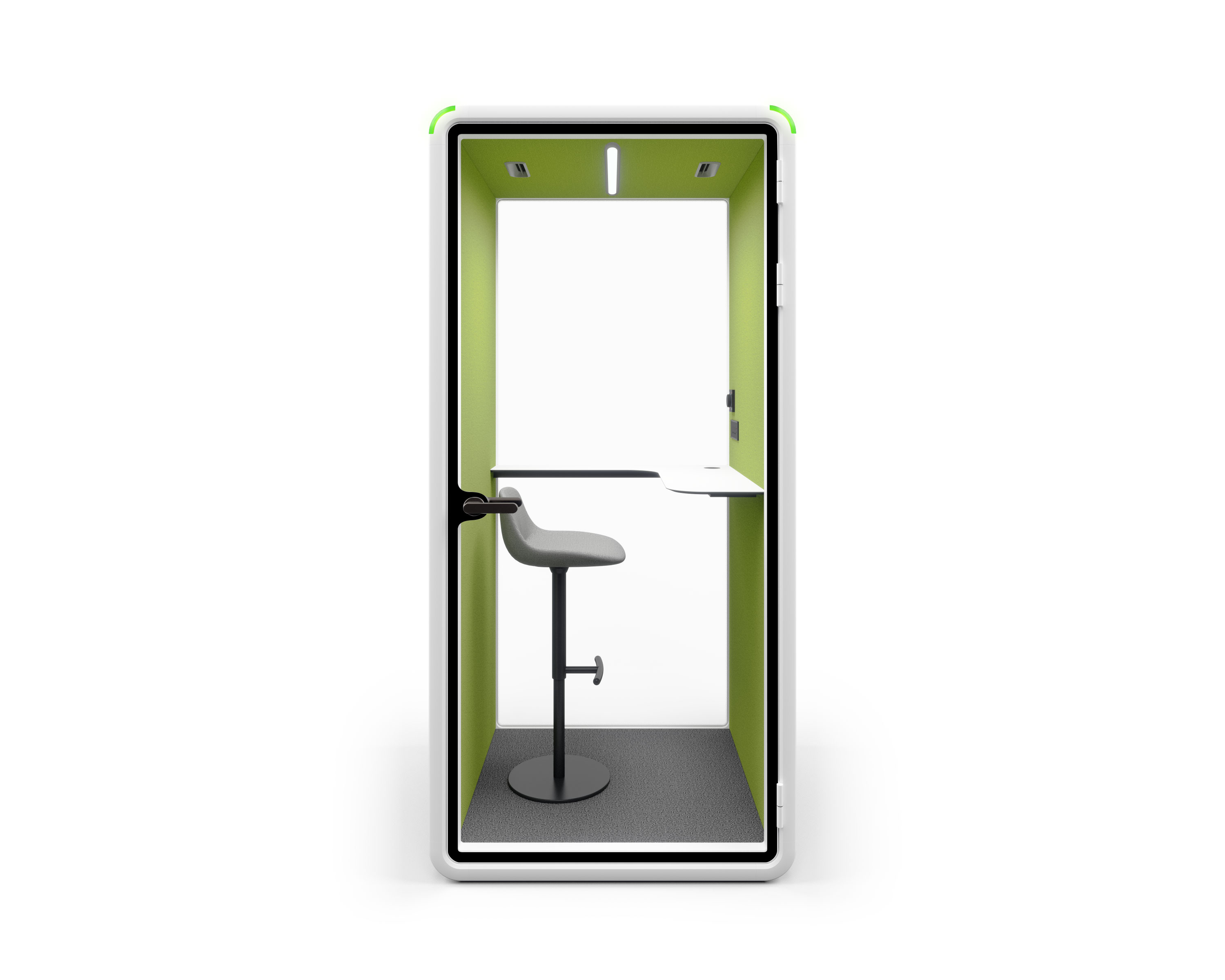

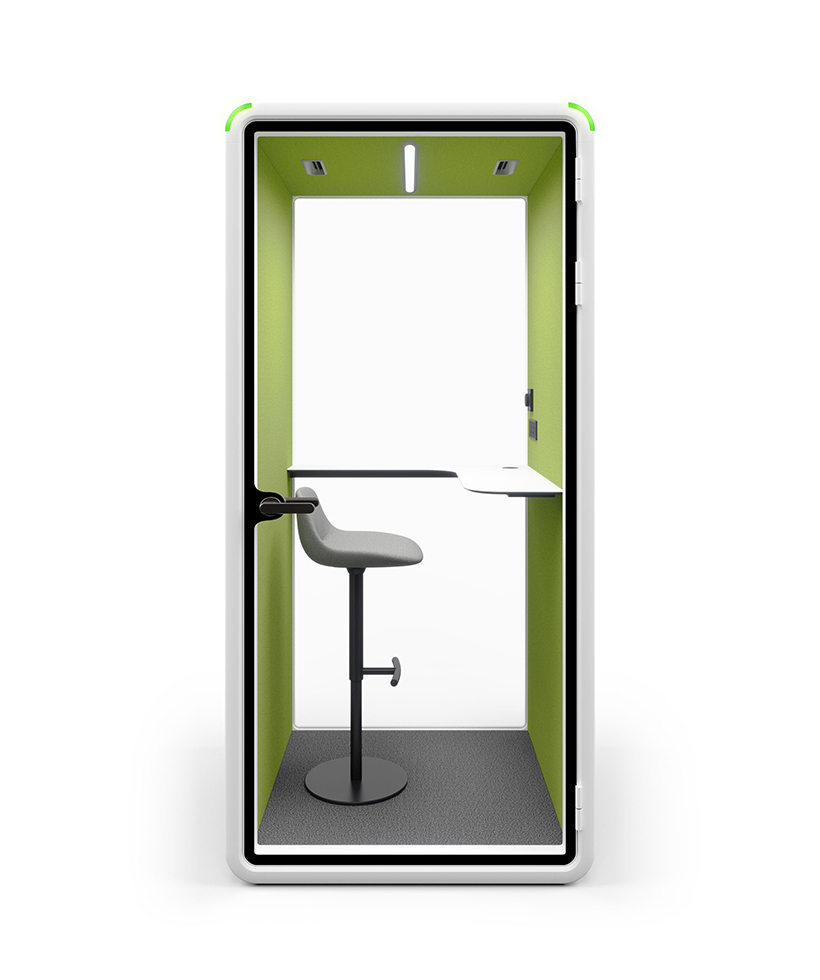

S model
1 Person
External Size
1080mm（42.51"）x 1000mm（39.4"）x 2338mm（91.61"）
Int. Size
942mm（37.1"） x 960mm（37.8"） x 2146mm（84.5"）
Door Passage
918mm（36.1"） x 2118mm（83.4"）
Floor Space
1m2（10.8ft2）
Net Weight
290kgs（639lbs）
Packaging Size
2320mm（91.3"） x 580mm （22.8"） x 1265mm （49.8"）
Power Input
85~264VAC, 47~63hz
Ventilation
0~70m3（91yd3）/hr adjustable,
1.6mins/change maximum, auto-refresh;
Light
3000k-6000k, 0-1800lm, adjustable,
Anti-glare index 20, CRI 95Ra, flicker-free;
Maximum Power
40W
Power Supply
5 Hole universal outlet x 2
USBTypeAx 1, USBTypeC x1

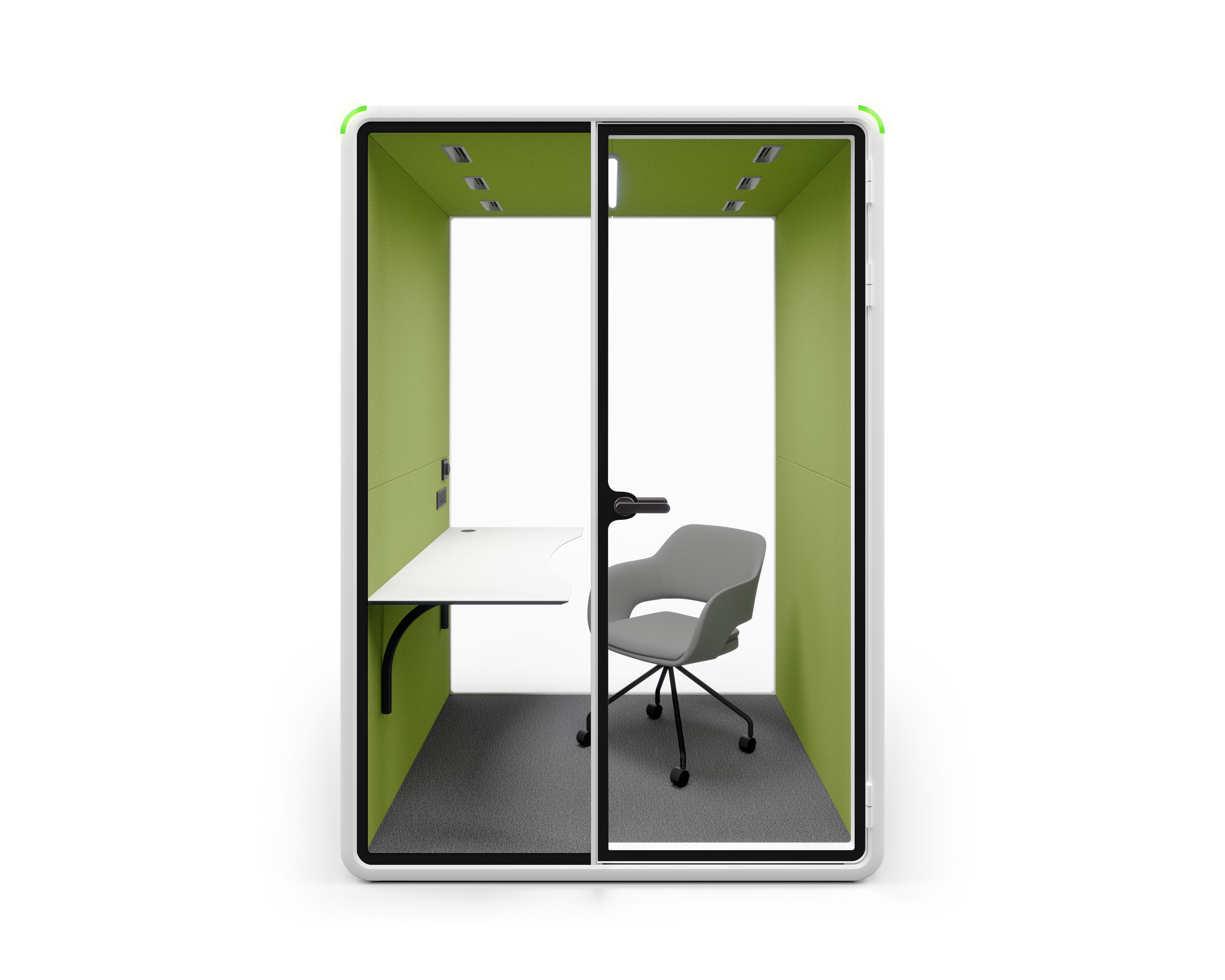

M model
2 Person
External Size
1600mm（63"）x1375mm（54.11"）x2338mm（91.6"）
Int. Size
1462mm（57.6"） x 1335mm（52.6"）x 2146mm（84.5"）
Door Passage
741mm（29.2"） x 2118mm（83.4"）
Floor Space
2.2m2（23.7ft2）
Net Weight
442kgs（974lbs）
Packaging Size
2320mm（91.3"）x 900mm（35.4"）x 1265mm（49.8"）
Power Input
85~264VAC, 47~63hz
Ventilation
0~110m3（143yd3）/hr adjustable
2.3mins/change, auto-refresh
Light
3000k-6000k, 0-1800lm, adjustable
Anti-glare index 20, CRI 95Ra, flicker-free
Maximum Power
52W
Power Supply
5 Hole universal outlet x 2,
USB TypeA x 1, USB TypeC x 1

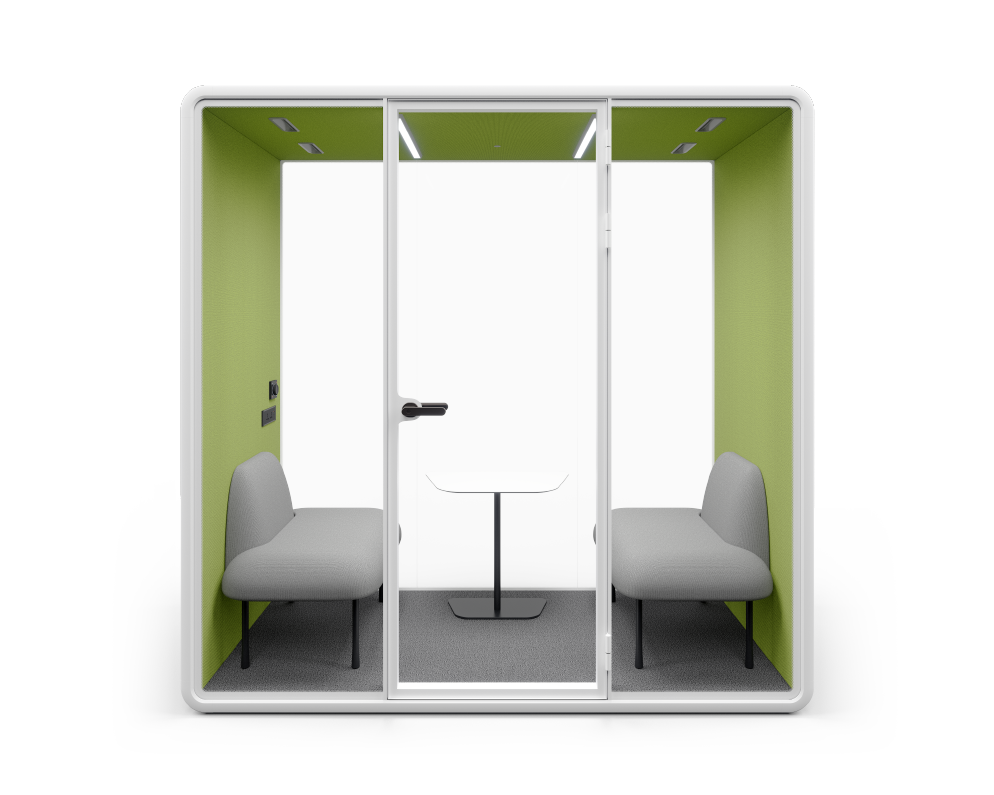

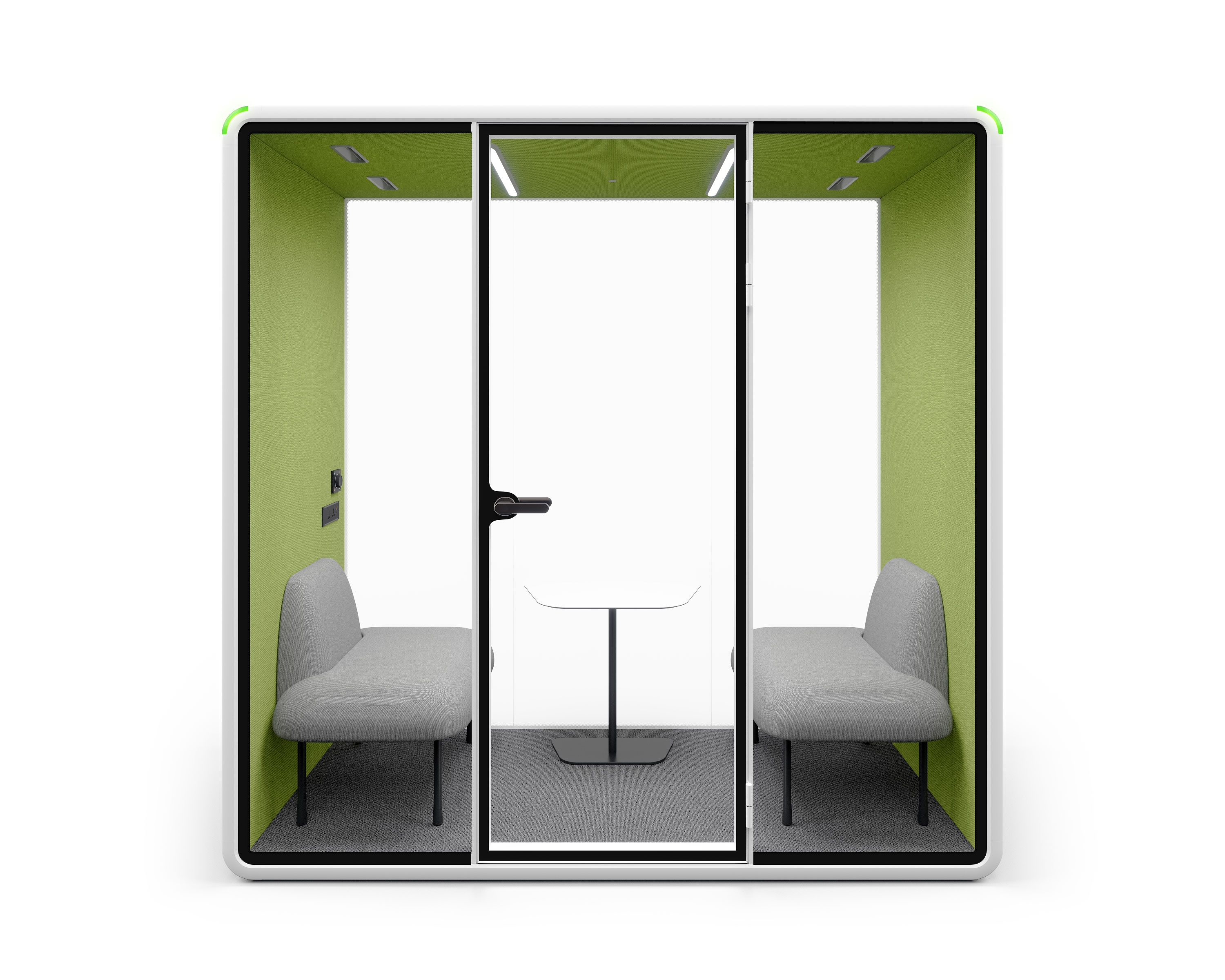

SL model
1 Person
External Size
2300mm（90.6"）x966mm（38"）x2338mm（91.6"）
Int. Size
2162mm（85.1"） x 926mm（36.5"） x 2146mm（84.5"）
Door Passage
741mm（29.2"） x 2118mm（83.4"）
Floor Space
2.2m2（23.7ft2）
Net Weight
504kgs（1111lbs）
Packaging Size
2320mm（91.3"）x 760mm（29.9"）x 1265mm（49.8"）
Power Input
85~264VAC, 47~63hz
Ventilation
0~110m3（143yd3）/hr adjustable
≈2.3mins/change, auto-refresh
Light
3000k-6000k, 0-1800lm, adjustable
Anti-glare index 20, CRI 95Ra, flicker-free
Maximum Power
60W
Power Supply
5 Hole universal outlet x 2,
USB TypeA x 1, USB TypeC x 1

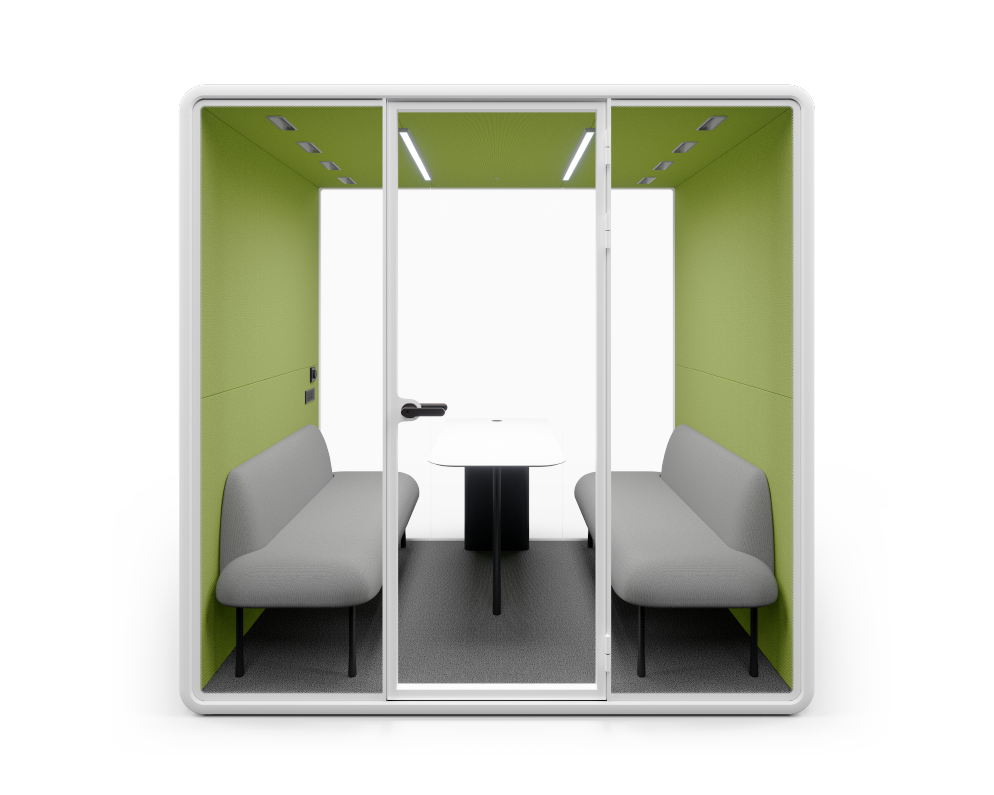

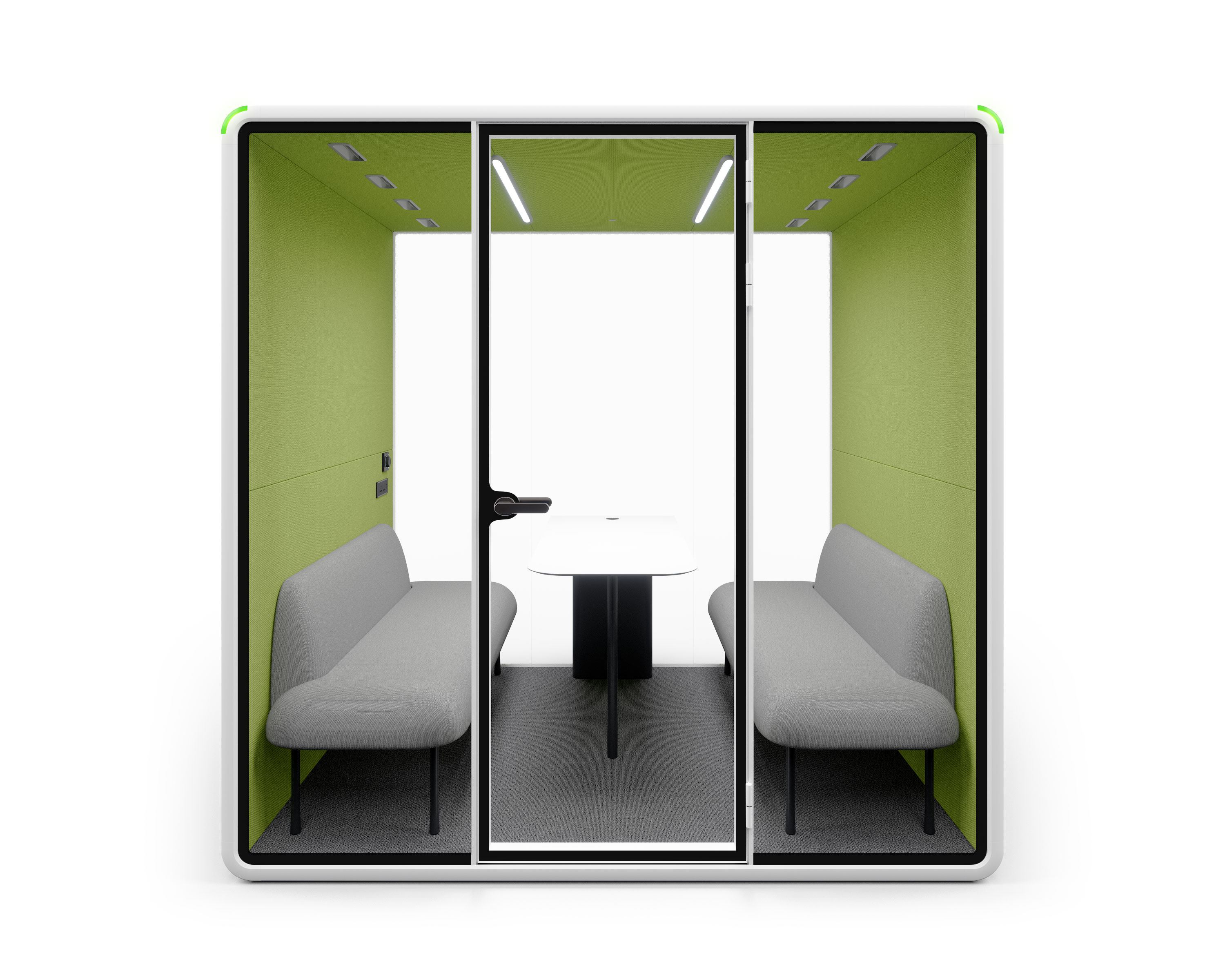

L model
4 Person
External Size
2300mm（90.6"）x1785mm（70.3"）x2338mm（91.6"）
Int. Size
2162mm（85.1"） x 1745mm（36.5"） x 2146mm（84.5"）
Door Passage
741mm（29.2"） x 2118mm（83.4"）
Floor Space
≈4.1m2（44ft2）
Net Weight
635kgs（1400lbs）
Packaging Size
2320mm（91.3"）x 1100mm（43.3"）x1265mm（49.8"）
Power Input
85~264VAC, 47~63hz
Ventilation
0-218m3 （283yd3）/hr adjustable
≈2.2mins/change, auto-refresh
Light
3000k-6000k, 0-1800lm, adjustable
Anti-glare index 20, CRI 95Ra, flicker-free
Maximum Power
100W
Power Supply
5 Hole universal outlet x 2
USB TypeA x 1, USB TypeC x 1

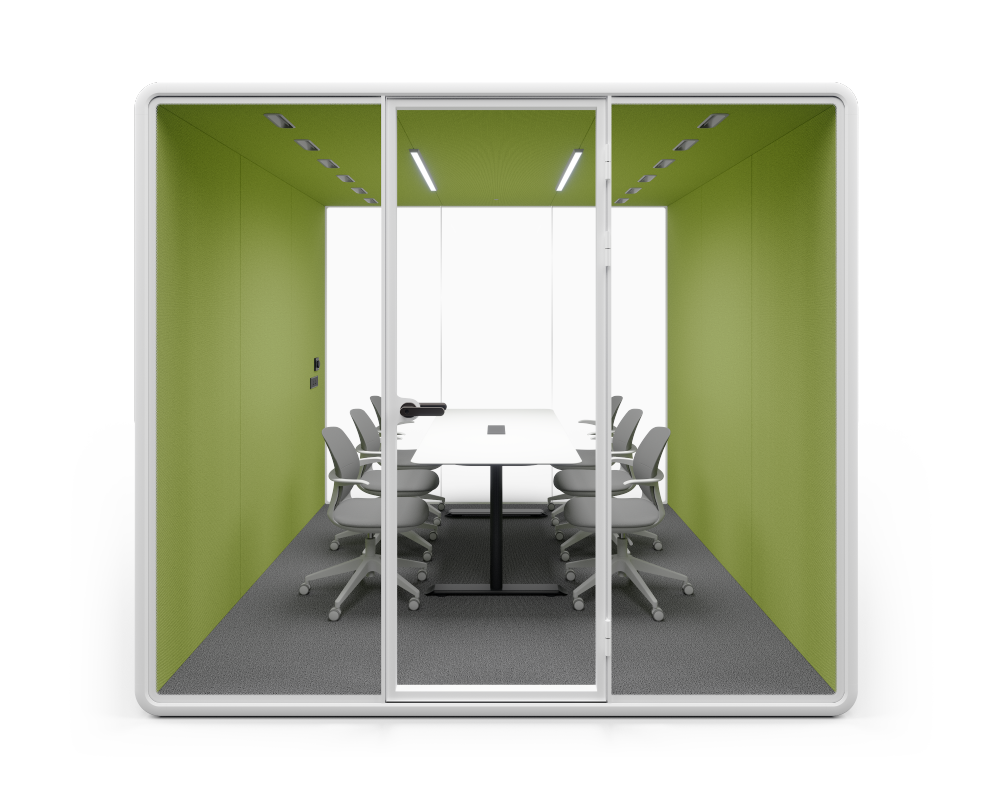

XL model
6 Person
External Size
2600mm（102.4"）x2605mm（97.6"）x2338mm（91.6"）
Int. Size
2462mm（96.6"） x 2565mm（101"） x 2146mm（84.5"）
Door Passage
741mm（29.2"） x 2118mm（83.4"）
Floor Space
6.8m2（72.9ft2）
Net Weight
852kgs（1878lbs）
Packaging Size
2320mm（91.3"）x 760mm（29.9"）x 1265mm（49.8"）
Power Input
85~264VAC, 47~63hz
Ventilation
0-327m3（425yd3）/hr adjustable
4mins/change, auto-refresh
Light
3000k-6000k, 0-1800lm,adjustable
Anti-glare index 20, CRI 95Ra, flicker-free
Maximum Power
120W
Power Supply
5 Hole universal outlet x 2
USB TypeA x 1, USB TypeC x 1
